DIY Vent Hood Cover: Step-by-Step Guide + 12 Styles for Every Kitchen

This stainless steel box has been hanging above your stove for several months. It may have come with the home. You may have installed a range-hood insert in place of the old microwave oven, but you never covered it. The previous owner may have installed a soffit that appears to be an afterthought rather than a design choice.

It bothers you either way every time you enter the kitchen. A DIY vent hood is one of the easiest and most cost-effective kitchen upgrades that you can do yourself. No plumbing. In most cases, no permits are required. No advanced woodworking knowledge is required. You only need a weekend to focus on the project, some lumber and a good plan.

Learn More, Beige Kitchen Cabinet

First, decide on these four things before you buy anything

What is the difference between a ductless and a ducted duct?

It has nothing to do with aesthetics. The ducts of ducted range hoods are designed to exhaust cooking fumes and grease. These hoods are more efficient, particularly over gas burners with high output, but they require ductwork to be routed through the ceiling or wall. Recirculating or ductless hoods use charcoal to filter the air and then return it back into the kitchen. Installation is easier, but the effectiveness and efficiency are lower.

Buy a convertible insert if you are starting from scratch. The flexibility is worth the slight price difference. Match the insert to your existing duct if it already exists.

How wide does it need to be?

Covers should be as wide as the cooktop. For gas ranges, go up to six inches on each side. For a 30-inch electric range, a 30-inch cooktop is fine. If space permits, a 48-inch gas range with a pro-style cover should be 54 inches.

How tall are you?

Start by measuring the height from floor to ceiling. Subtract 36″ for counter height. Subtract 30 inches for electric and 36 inches for gas. You will have a measurement of your approximate cover height, which is the distance from the bottom edge of the hood to the ceiling. This measurement is usually between 42 and54 inches in a 9-foot standard kitchen with a gas stove.

Sort this out before you build: Lighting and filters

After the cover has been installed, the insert will need to be replaced. Be sure to check the lighting and grease filters before you permanently build around the hood. Filters that can be cleaned in the dishwasher will save you a lot of time during the lifetime of your hood. Semi-gloss and satin paints are easy to clean on the surface of the hood. You will see the mistake of using matte paint over a stove every time you clean it.

The safety question that no one can answer properly

The same question is asked in the comments sections of every DIY range-hood tutorial: Is it safe to wrap a wood cover over a range-hood? Yes, as long as you maintain proper clearances. The answer is here.

What is the safety of a wood range hood cover?

The standard kitchen cabinets that are installed directly over a gas range or an electric range use the same MDF and plywood as the range hood covers. The cabinets are not treated to be fire retardant. Distance and airflow are the main factors that protect, not the material.

• For electric cooktops, keep a 30 inch clearance and for gas cooktops 36 inches between the surface of the cooktop and the bottom cover. In most jurisdictions this is a requirement, not just a suggestion.
• Allow a gap of 1/4 inch between the top edge of the cover and ceiling. This will allow heat and moisture to escape. It is important to remove the cover, as moisture can accumulate behind it after months of cooking. This can lead to mold and wood decay.
• Don’t completely cover all four sides of your range hood insert. Air circulation is necessary for the unit to work properly and prevent overheating. This is provided by the open bottom and side clearances of the cover.
• Check that your insert can handle the output of a gas range with a higher BTU total. Heat-related problems can begin when an insert is underpowered and working harder than designed in a closed space.

No, you do not have to apply a fire retardant finish on wood. Building codes specify the proper clearance distances, which is what actually protects.

Get a full list of materials and their costs.

Each tutorial will tell you to get some 2x4s and plywood. This is a breakdown of the cost per line item with realistic ranges, so you can know the total before going to the hardware store.

Add $30 to $100 for specialty materials, such as shiplap or fluted MDF panels. Materials that have been reclaimed or salvaged can be used to reduce the total cost down to less than $60. For material costs, see the styles below.

Tool Required

• Circular saw (mitersaw preferred for trim work).
• Drilling with wood bits
• Brad nail gun or 2-inch finish nails
• Carpenter’s level minimum 24 inches long
• Measurement tape and pencil
• Stud finder
• Caulk gun
• Paintbrushes or small roller
• Panel clamps hold panels in place while you work

Step 2: Installing and Building the Frame

Everything is attached to the frame. Every panel will look crooked if the frame is even an inch off plumb. If you build it correctly, the rest is simply finishing work.

Build three separate frame boxes

Build three rectangular boxes using 2×4 boards. Match the width of your range hood to the bottom box. This box is bolted to the insert from both above and behind. Insert 2×4 blocks at the mounting holes for inserts. Middle box: sits 2.5 inchs below the bottom box and provides rear attachment for hood. Top box: flush against ceiling and secured into ceiling joists.

Install as you go and in order

• Mark all studs and joists before you start
• Install the bottom box at the correct height over the cooktop using lag bolts.
• Install the middle box 2.5 inches above the bottom box
• Install top box flush with ceiling using lag bolts in joists
• Connect the three corners with vertical 2×4 supports.
• At every stage, check plumb and level

Build the Hoods on the Wall and Not the Floor

Don’t assemble the frame and then lift it. It is difficult to accurately position a frame that weighs 60 pounds or more for a 48 inch hood. Each box should be built separately, installed, and then connected to the vertical supports. This will give you a more accurate result.

Step 3: Installing a Range Hood Insert

Please follow the instructions for your particular insert. The cabinet insert hoods are attached from the top and back panels using the included hardware. If necessary, run new electrical. Route the ductwork if it is ducted before you put the cover on. Add ductwork after the cover has been built.

Test Controls Before Building Cover

The controls for most range hood inserts are located on the underside of the front. It is natural and comfortable to reach underneath the inserts. Plan a cutout on your cover if your insert’s controls are located on the front. Or, leave the bottom as a removable section. This should be tested before construction. It is difficult to discover the problem once the cover has been painted.

Step 4: Attaching and Building the Cover

Cut the Panels

Measuring the width and height of your frame front is important. Use 1/4-inch plywood to cut the front panel exactly to these dimensions. Two side panels should be cut to the same depth and height. Before attaching, sand all surfaces using 120-grit sandpaper. Smooth panels accept paint evenly. Smooth panels are more textured.

Attaching without Splitting

Before driving any screws, clamp the front panel against the frame. Confirm that it is perfectly level and centered. Drill pilot holes at all edges before driving a 2.5-inch wood screw. Fill in the holes with wood filler immediately. Repeat the process for the side panels. Side panels are often more visible than expected, so they should be treated with the same care.

Add Trim

Trim profile gives the cover it’s identity. A plywood box that is flat and has no trim on it looks like a building project. With the right moldings, shiplaps, or fluted paneling, a box looks like it was custom-built. The 15 sections of each style detail the specific trim techniques for that style. General rule: Nail from the center outwards, fill in all holes and sand with 220-grit after drying.

Step 5: Finishing the DIY project into a Customized Product

Most people will either complete the project successfully or ruin everything they have built. Construction is complete. Don’t rush to finish.

• Fill in every nail and screw hole. After sanding, run your fingertip over the surface. Fill and sand the area again if you feel any depression.
• Paintable latex caulk can be used to seal all seams at the point where the cover meets walls and ceilings. Use a damp finger to smooth immediately. This is the difference between added-on and built-in.
• Prime before painting. Primer is applied to raw wood and filler before painting.
• Two thin coats of semi-gloss paint or satin are applied, allowing each coat to dry completely between them. Semi-gloss paint can be cleaned with a damp rag. Matte paint over a stove will stain permanently.
• Finish stained wood covers with a paste wax finish to protect them from kitchen grease, humidity and moisture.
• Look at the seam of the ceiling from the other side. Re-caulk if it’s not perfect.

12 DIY Rangehood Cover Styles: A Guide to Every Look

Every style has the same frame and installation procedure. The only thing that changes are the trim profile and finish, as well as the material of cover. Each card includes a description of the style, key materials, an expert tip and who it is best suited for. The background color of the style card indicates whether it is suitable for beginners, intermediates, or advanced.

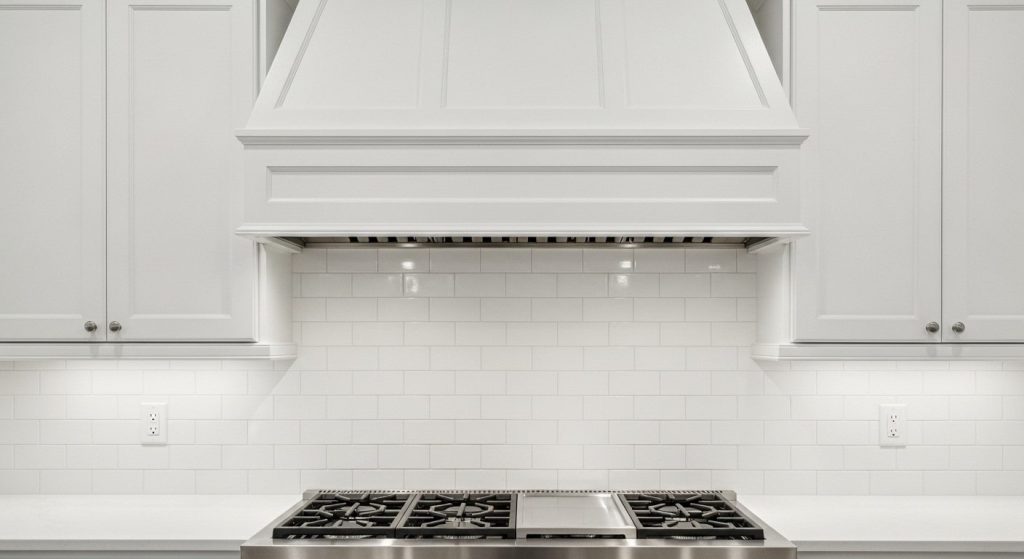

Style 1 – Classic White Shaker

Classic White Shaker range hood covers are the most popular DIY style. It is easy to make, looks great, and is suitable for any kitchen. The style is achieved by applying flat shaker-style or recessed-panel cabinet door trim directly to the plywood face. This looks like a natural extension to the shaker style cabinetry that is found in millions of American homes. It looks as if it was designed from the beginning.

Pro Tip: Buy pre-primed poplar trim boards. These boards require less preparation and paints more evenly than wood that has not been primed, so you can save one coat of primer.

Anyone who matches existing shaker cabinetry. First-time builders. Kitchens that are more about seamless integration than statement pieces.

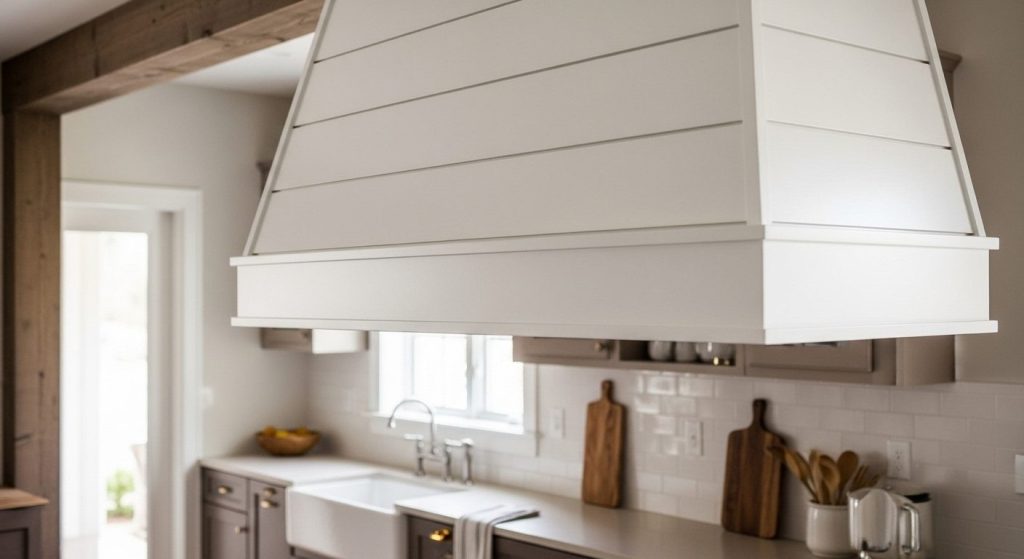

Style 2 – Shiplap Farmhouse

Shiplap horizontal boards, applied directly to the face of the cover, create an instantly recognizable farmhouse look that has been popular for many years. The shadow lines that are created by the small gaps between the boards add texture and depth without the need for complex joinery. Shiplap hides imperfections in plywood beneath better than a painted flat surface, because board lines attract the eye. It is one of the easiest styles to construct and the most pleasing to the eye when completed.

Pro tip: Use the nickel as a guide to ensure that shadow lines are perfectly uniform. Every three to four boards, run a level along the face of the board. This will help you catch any drifting before it becomes a problem.

Best for: Farmhouse or rustic kitchen aesthetics Budget-conscious builders. White or off-white kitchen cabinets. Whoever wants to make a strong visual impact with the least amount of material?

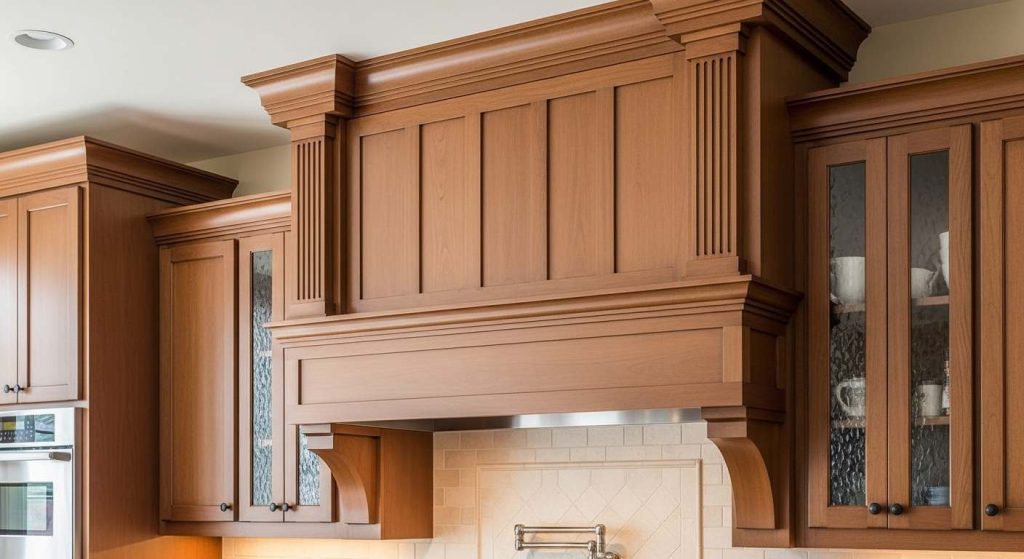

Style 3 – Craftsman with Trim Molding

Craftsman is characterized by horizontal and vertical trims that create rectangular panels to frame the cover, giving it a furniture like appearance. Craftsman-style hoods are often characterized by a wide base band on the bottom and vertical pilasters along the sides. The top is usually crowned with a stepped crown. This style is a natural match for Craftsman- or Mission-style cabinets, but it also works well in transitional kitchens when you need more architectural detail and visual weight than a Shaker cover can provide. The quality of the mitered corner is what determines the overall appearance.

Pro tip: Cut miter joints with a sharp knife at 45 degrees and check the fit before applying adhesive. Filler is not a good option for a painted surface. A gap in a miter join will be visible throughout the lifetime of the cover.

Best for: Craftsman bungalow or Arts and Crafts kitchens. Whoever wants to create a distinct architectural style with historical references. The range hood is intended to be the focal point of a kitchen, rather than blend into it.

Style 4 – Straight-Sided Modern

Straight-Sided Modern covers are defined by the things they do not have. No decorative trim, molding or panel detail. This is a flat, square, and perfectly finished cover, with sharp edges. It can be painted in either a semi-gloss or matte finish. This restraint is a sophisticated and intentional choice for modern kitchens. With nothing else to catch the eye but the edges and surfaces of the kitchen, imperfections in the finish or build will be visible. It is harder than it looks to get flat, square and smooth. Each corner must be 90 degrees. Each surface must be flat. This style requires more sanding, and therefore more coats of paint than the more forgiving textures.

Pro tip: Finish the job with three thin layers of primer with a high build, sanding each coat between with 220-grit before applying topcoat paint. Professional cabinet painters use this technique to get the flat, glassy surface needed for this style.

Best For: Modern, minimalist, or Scandinavian-influenced kitchens. Kitchens with two-tone cabinets and a hood cover that is a different shade. Whoever wants to make the hood look more like a decorative object than a piece of woodwork.

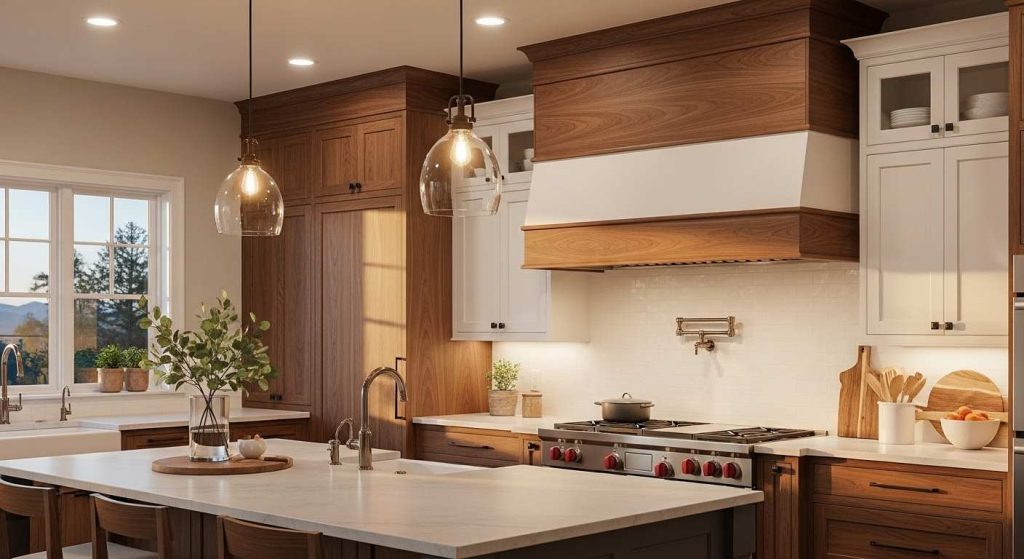

Style 5 – Two-Tone Stained Wood

The Two-Tone Stained Wood Cover uses the same structure as other covers, but the contrast of stained wood with painted sections creates visual interest. Trim is not required. Classically, stained wood panels are used on both the top and bottom of the cover. A painted middle section is then added. Or stained vertical pilasters are placed flanking the painted center panel. This style photographs beautifully and bridges between the warmth and clean lines of natural wood kitchens. This is an excellent choice for kitchens that have both painted and wood elements.

Pro tip: Apply grain sealer before staining any wood with an open-grain, such as oak. Grain sealer helps to fill the pores of wood and allows for a more uniform stain absorption. Open-grain wood absorbs stains unevenly without it and appears blotchy.

Best for: Kitchens with a mix of natural wood and painted finishes. Whoever wants warmth and colour without having to use natural wood cabinets. Two-toned kitchen designs in which the range hood covers anchor the color story.

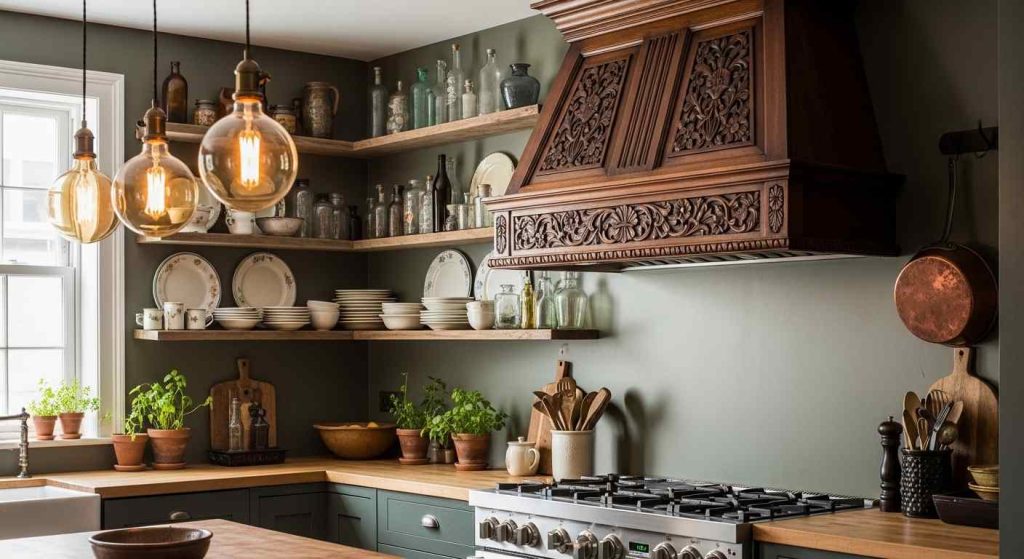

Style 6: Antique or Salvaged Wood Panel

The most creative results are achieved by using a salvaged item as the face of the range hood. A salvaged architectural panel, an antique headboard with intricate wood carvings, a mirror frame ornate with the mirror removed or a carved section of a mantelpiece can all be used as a stunning face for a range hood. The internal frame can be built the same as for any other style. The salvaged panel simply replaces a plain plywood front. Salvaged pieces are unique, so your hood will be truly one-of-a-kind.

Pro tip: Look at estate sales and salvage shops, as well as Facebook Marketplace and Craigslist to find salvaged items. Look for antique headboards and carved panels. Also, old cabinet doors. Most buyers don’t know what to make of these beautiful pieces, so they sell them for between $20 and $80.

Best for: Eclectic or vintage kitchens, farmhouse kitchens, or bohemian-styled kitchens. Character is more important to them than consistency. Whoever wants a hood that will become a talking point. Budget-conscious builder who is willing to look for cheaper materials.

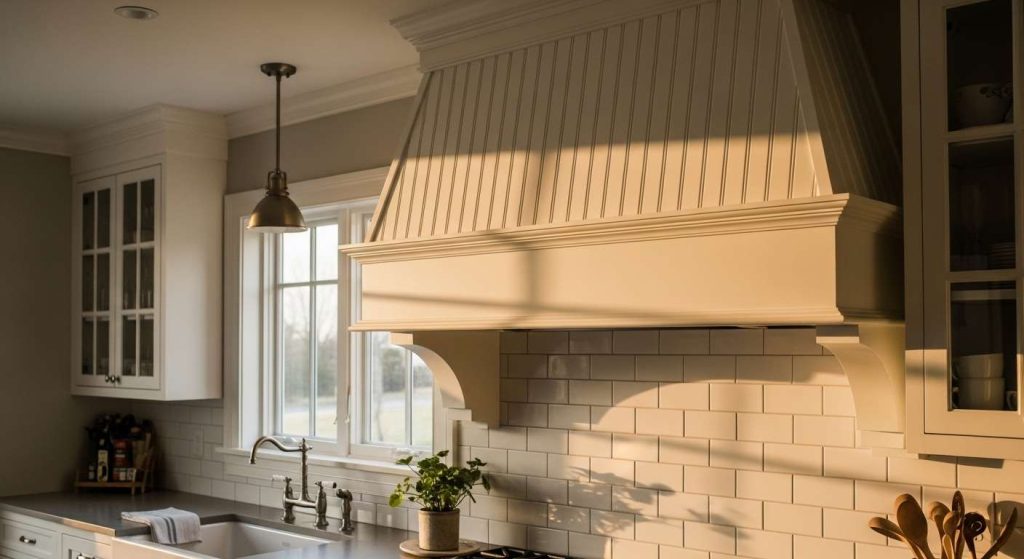

Style 7: Beadboard Panel Cover

A beadboard, a wood pattern that is very popular in the United States, is a vertical board with a small round ridge between them. This creates a rhythmic line texture. Beadboard on a range cover creates a classic American feel, which is timeless, warm and approachable. It goes well with painted cabinets, farmhouse sinks and subway tile backsplashes. It comes in sheet format, making it easier to construct. A sheet of beadboard 4×8 will cover the front, both sides and back of a standard hood with plenty of material left over.

Pro tip: Paint beadboard before installing it on the cover. Paint a flat panel onto sawhorses rather than cutting around the frame trim after everything has been assembled.

Best for : Cottage or country kitchens. Cabinetry painted white or cream. Whoever wants a traditional, finished look without complicated joinery.

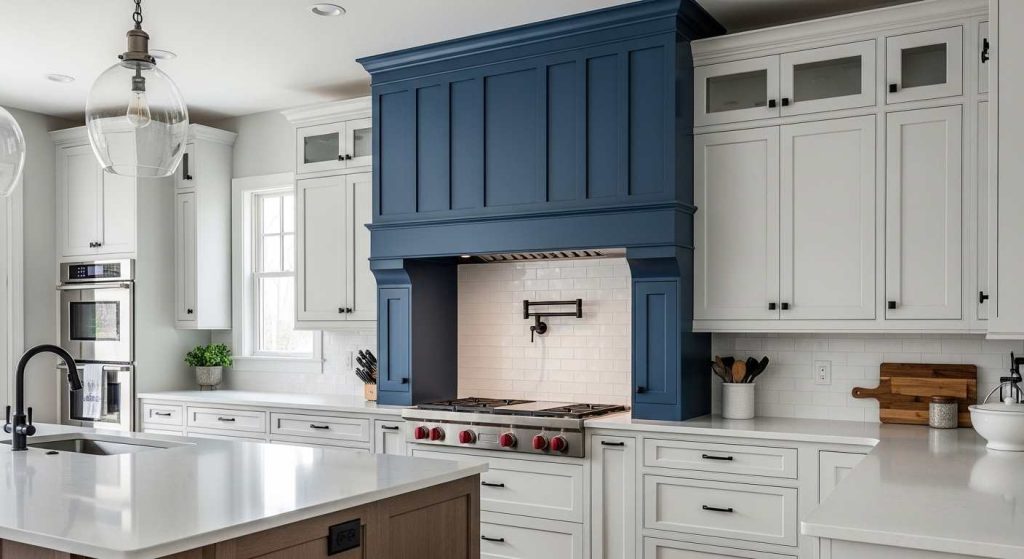

Style 8: Board and Batten

Board and batten siding is a vertical plank pattern in which wider boards are first installed and then narrow batten strips placed over the seams. It creates strong vertical lines on a range cover that makes it feel more substantial and taller. The pattern is large enough to be seen clearly across a room and goes well with modern farmhouse style kitchens that feature shaker cabinets and black hardware. The construction is simple and forgiving, as the battens will cover up any small gaps or misalignments.

Pro tip: Lay the boards out evenly on the surface of the cover before installing battens. You can number them with a pencil to ensure that you assemble the boards in exact order when you glue and nail.

Best For: Modern farmhouse kitchens. Kitchens that have strong vertical elements, such as tall cabinets or tile at ceiling height. Whoever wants a graphic, bold pattern that is visible from across the room.

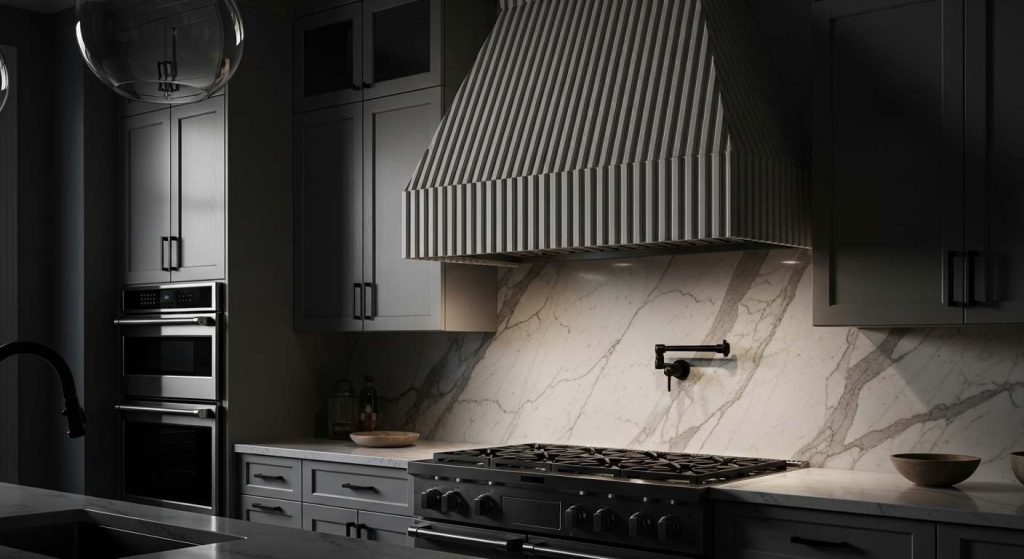

Style 9: Fluted Wood Panel

The panels are made up of a series vertical grooves that have been routed into MDF, or solid wood. The pattern creates dramatic lines of shadow that change throughout the day with the changing kitchen lighting, giving the cover an illusion of three-dimensionality that flat panels can’t achieve. Over the last three years, fluted hoods are often featured in high-end design magazines and have become a strong association with kitchen renovations. It can be used in both modern and traditional contexts, depending on whether the hood is painted or finished with a natural stain. It is a great DIY project for the price of a custom-made kitchen accessory.

Pro tip: Pre-fluted MDF panel is easier to work with and source than routing your flutes yourself. You can find fluted MDF panels or millwork panels at specialty lumber stores and online. Most ship at a flat rate. Material costs are higher, but time savings are substantial.

Best For: Transitional, contemporary, or design-forward kitchens. Whoever wants a cover to be a focal point in the kitchen. The kitchens that are a reflection of the design investment.

Style 10: Nickel Gap Shiplap

Nickel gap shiplap, also known as nickel gap shiplap, is a variation of traditional shiplap. The gap between the boards is exactly the width of a penny or 1/16 inch. This narrower gap gives a refined and less rustic look than traditional shiplap, while still maintaining the horizontal texture of the style. The smaller, more consistent gap is read as precision instead of the larger rustic gaps found in traditional farmhouse shiplap. This cleaner, more modern version of horizontal planks works well in coastal, farmhouse, or transitional kitchens, where the original gap between the shiplaps feels too casual.

Pro tip: Use a nickel to measure the distance between each board. From across the room, even a board that’s a little wider or narrower will be noticeable. This style works because of the consistent spacing.

Best for: Coastal or beach houses, updated farmhouses, and kitchens with a modern feel. The kitchens that feel too rustic with traditional shiplap, but too cold and sterile with a flat surface. Whoever wants a horizontal texture that is more refined than the standard farmhouse shiplap.

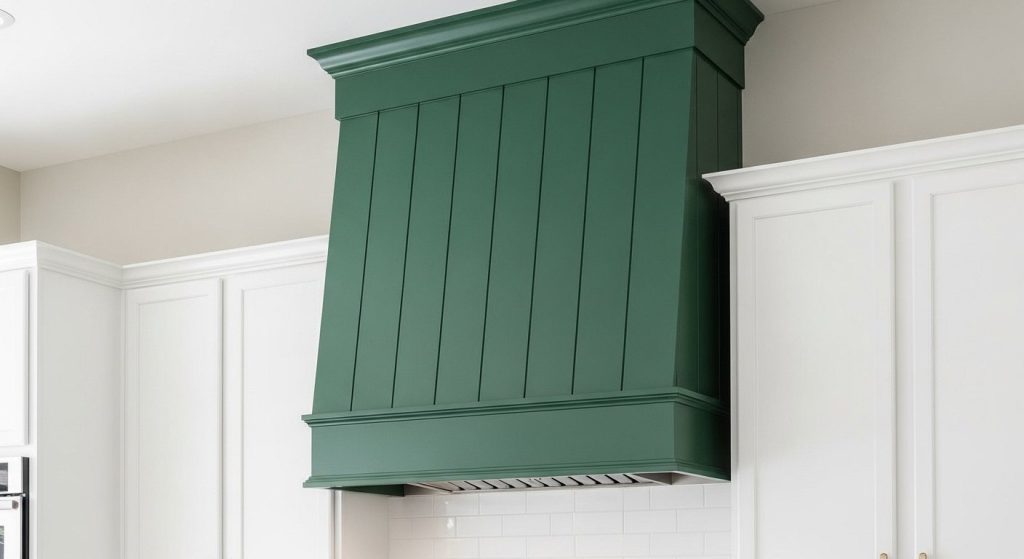

Style 11 – Vertical Shiplap with Painted Accent

The cover is completely different when you run the shiplap vertically instead of horizontally. Vertical planks are used to emphasize height and make the hood look taller. This style, when combined with an accent color painted on the cover to differentiate it from the cabinetry surrounding the range, creates a focal area above the range. It draws the eye up and adds height without structural changes. This painted version is particularly effective in kitchens, where a contrast color on the wall behind the range adds visual interest and depth. For this application, popular accent colors include navy, forest green and warm black.

Pro tip: Install the first vertical board with a level, and screw it to the frame. Use it as a guide for all subsequent boards, and check against it instead of the wall which might not be perfectly plumb.

Best for: Kitchens that are designed to draw the eyes upward. Kitchens with two-tone designs, where the wall behind the range is accented in a color. Transitional kitchens with farmhouse textures and a modern color palette.

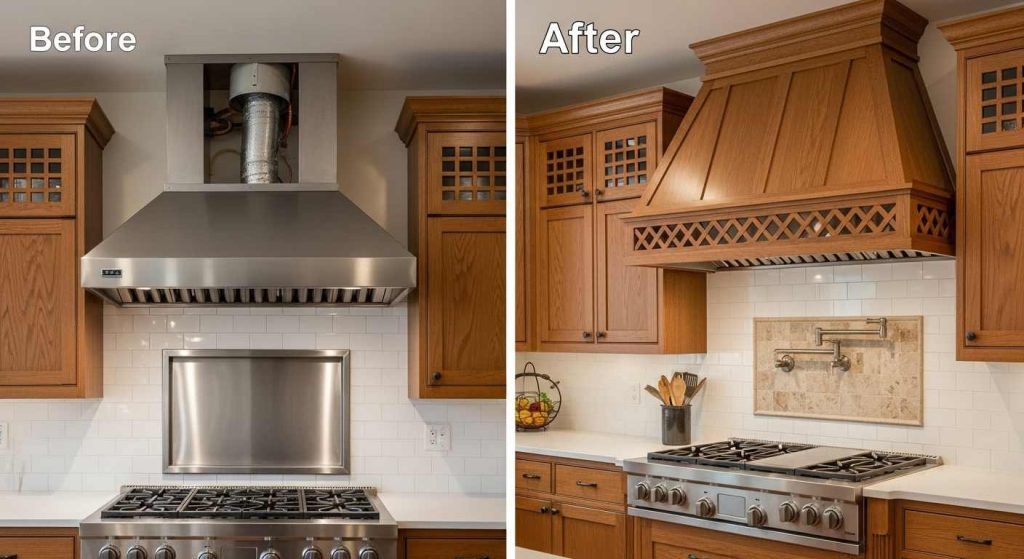

Style 12 – Lattice Trim Craftsman

This lattice trim Craftsman adds decorative wood lattice strips around the inside border and corner edges of the cover. It creates the level of detail associated with custom high-end millwork. This is a variation of the Craftsman standard style, adding a layer of fine details: lattice wood strips to frame each panel section; decorative corbels on the corners of the base; and a multi-step treatment for the crown at the top. This style has a lot of trim details, which means there are more pieces to be cut, and miter joints that need to be perfected, as well as more surfaces to fill in and sand. If done correctly, it looks as if the cover belongs in a kitchen that costs four-times what this cover costs.

Key Material: All Craftsman Materials plus 3/4-inch wood strips for decorative trim detail. Also, decorative corbels for base corners from a millwork provider, multi-piece crown molding assembly at the top. Wood glue for all trim joints, brad nails for trim joints, wood filler and primer.

Best for: Craftsman bungalows and Arts and Crafts Kitchens, where historical accuracy is important. The result will look like custom cabinets. The most experienced DIYers are looking to create their best kitchen yet.

Final Thoughts

One of the most rewarding kitchen projects is to make a DIY vent hood. High visual impact. Low cost of materials No plumbing. No structural changes. With the right finishing it will look like the kitchen was designed from the beginning.

This guide will help you to remember the most important things: Measure twice before cutting. Secure the frame into wall studs or ceiling joists. Maintain your clearance distances. Do not rush finishing steps. Caulk, filler and paint are the most important steps. This is how you can turn a weekend project from a simple DIY into something that appears custom-built.

You can transform your kitchen in just one weekend, whether you’re a novice DIYer who is deciding between shiplap or shaker panels, or a woodworker with experience ready to tackle the coffered panel. Choose your style, collect your materials and start.
